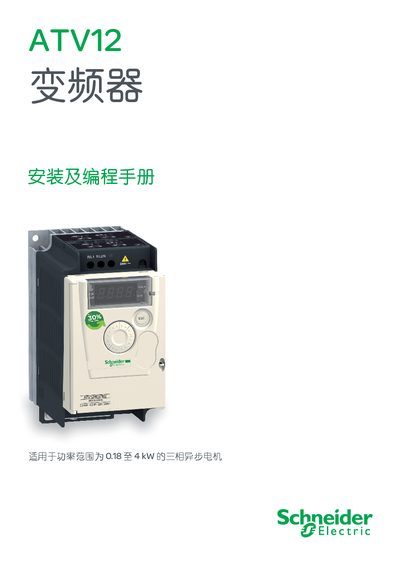

This manual introduces the installation and programming methods of ATV12 variable frequency drive. ATV12 variable frequency drive is suitable for three-phase asynchronous motor with power range of 0.18 to 4 kW.
The Schneider Electric ATV12 VFD installation and programming manual guides qualified personnel through safe installation, wiring, and setup of the drive for three‑phase asynchronous motors. It includes detailed sections on hardware installation, terminal connections, parameter configuration, and troubleshooting.
Safety warnings emphasize that only trained professionals should handle the equipment, with procedures for power isolation, lock‑out, and DC‑bus discharge. The document also outlines software version updates, control mode settings, and energy‑saving features. This manual is written in Chinese.
