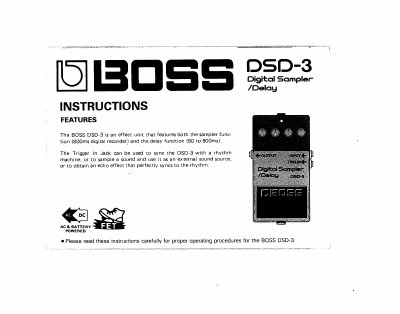

This manual provides instructions for the BOSS DSD-3, a compact effect unit featuring both a digital sampler function with an 800ms recorder and a delay function ranging from 50 to 800ms. The device allows users to sync with rhythm machines via a Trigger In Jack or use the pedal switch to start recording and playback.
| Sampling Time | 200ms (MIN) to 800ms (MAX) |
|---|---|
| Delay Time | 50ms (MIN) to 800ms (MAX) |
| Frequency Response (Sampling/Delay) | 40Hz to 7kHz |
| Frequency Response (Direct Sound) | 10 Hz to 60kHz |
| Power | 9V Dry Battery x 1, AC adaptor (BOSS PSA Series) |
| Current Draw | .45 mA to 60mA (9VDC) |
| Input Impedance | 1MΩ (FET input) |
| Dimensions | 234(W) x 256(H) x 415(D) mm |
The sampling time ranges from 200ms to 800ms.
Yes, the Trigger In Jack can be used to sync the unit with a rhythm machine.
The unit requires BOSS PSA-series adaptors (PSA-120, 220, or 240); ACA-series adaptors are not compatible.
