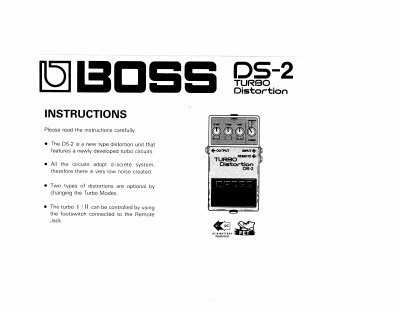

This manual provides instructions for the BOSS DS-2 distortion unit, a device featuring newly developed turbo circuits and a discrete system for low noise. It details the panel controls, including knobs for distortion, tone, and level, as well as switches for turbo modes and effect on/off.
The document covers setup procedures, including connecting the input jack to automatically switch the unit on and using an optional footswitch for remote control. It also explains the two available turbo modes and provides specific guidelines for battery replacement and AC adaptor usage.
| Power | 6VDC or AC Adaptor (PSA series) |
|---|---|
| Current Draw | 12mA |
| Equivalent Input Noise | Less than -120dBm (tHF-A) |
| Input Impedance | 1MQ |
| Output Load Impedance | More than 10k) |
| Dimensions | 70(W) x 55(H) x 125(D) mm |
| Weight | 400g |
The unit is compatible with BOSS PSA-120, 220, or 240 AC adaptors.
The BOSS manganese battery will last for 10 to 20 hours depending on usage.
Connect an optional footswitch to the Remote Jack and set the Turbo Mode Switch to the REMOTE position.
