The EDIROL Bi-Amp Monitor DM-5 utilizes a two-way, bi-amplifier design to achieve high sound quality. The monitor features a 120-mm LF Driver and a 19-mm soft-dome HF Driver as speakers. The amplification includes 30-watt and 20-watt amplifiers designed to achieve high sound quality. In addition to XLR and TRS phone analog input, the DM-5 is provided with digital input connectors (coaxial and optical) that support 96 kHz sample rate and 24-bit digital audio. Digitally input signals are reproduced faithfully through 24-bit D/A conversion, preventing noise or a drop in sound quality. The monitors can be used with a wide variety of equipment and applications through selective use of the analog and digital settings.

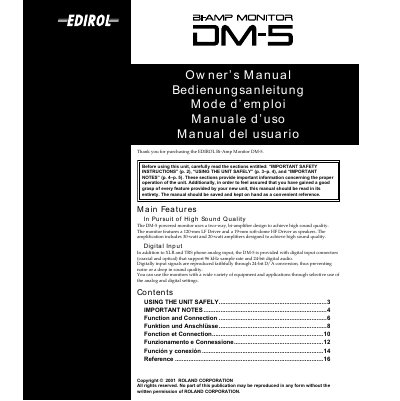

This manual provides instructions for the Roland DM-5, a powered bi-amplifier monitor featuring a two-way design with a 120-mm LF driver and a 19-mm soft-dome HF driver. It includes amplification of 30 watts and 20 watts respectively to achieve high sound quality.
| Driver Configuration | 120-mm LF Driver and 19-mm soft-dome HF Driver |
|---|---|
| LF Amplifier Power | 30-watt |
| HF Amplifier Power | 20-watt |
| Digital Input Support | 96 kHz sample rate and 24-bit |
The DM-5 is provided with digital input connectors (coaxial and optical).
Yes, you can use the monitors with a wide variety of equipment and applications through selective use of the analog and digital settings.
