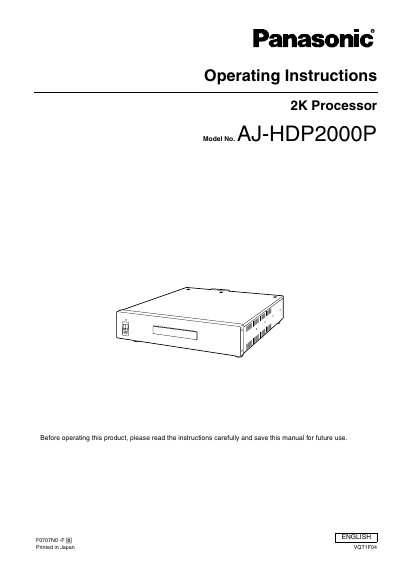

Panasonic AJ-HDP2000P 2K Processor Operating Instructions

AJ-HDP2000P operating instructions

Brand: Panasonic
Document type: User Manual
Language: English
Pages: 20
File format: PDF
File size: 739 KB
Published: 09 August, 2012
Updated: 30 September, 2023
Model: AJ-HDP2000P
MD5 checksum: CF7F7948EFF6E0C44C67BC13A52980FE
PDF: Panasonic AJ-HDP2000P 2K Processor Operating Instructions PDF

About this manual

The Panasonic AJ-HDP2000P is a 2K Processor designed for post-production and telecine systems. It enables professionals to record full 12-bit 4:4:4 '2K' 2048 x 1080 resolution film image data, or 12-bit 4:4:4 sampled 1920 x 1080 HD images onto Panasonic's AJ-HD3700 series HD-D5 VTRs. The device utilizes JPEG2000 compression to convert film to digital data while maintaining resolution and minimizing distortion.

What's inside

Operating Precautions
Overview/Features
Controls and their Functions
Connector Section (ROAM)
Video Input and Output
Audio Output
Time Code I/O
System Connections
Indicator Display
Specifications

Specifications

Resolution Support	2048 x 1080 and 1920 x 1080
Compression Scheme	JPEG2000
Maximum Record Time	155 minutes
Dimensions (Height)	2U
Weight	7.5 kg (16.5 lb)

Frequently asked questions

Which VTR models are compatible with this processor?

The AJ-HDP2000 is designed for the HD-D5 VTRs AJ-HD3700H, AJ-HD3700A, and AJ-HD3700B.

What is the maximum recording time?

The maximum recording time is 155 minutes, which matches the HD-D5 VTR's 24fps modes.

What compression scheme does the processor use?

The processor uses JPEG2000 compression to convert film to digital data.
