This document is the operating instructions for the AJ- AJ- Electronic HD View Finder. It includes some precautions, such as not disassembling the product and not pointing the eyepiece directly at the sun. It also warns against exposing the equipment to rain or moisture to reduce the risk of fire or shock hazard. The document mentions that the device complies with Part 15 of the FCC Rules and provides installation instructions to ensure compliance. The equipment has been tested and found to comply with the limits for a class A digital device. It generates radio frequency energy and may cause harmful interference to radio communications if not used according to the manual. The document advises against operating the equipment in a residential area to avoid causing harmful interference, and the user will be responsible for resolving any interference at their own expense. Lastly, it cautions against operating near appliances that generate strong magnetic fields as it may introduce noise in the video and audio signals.

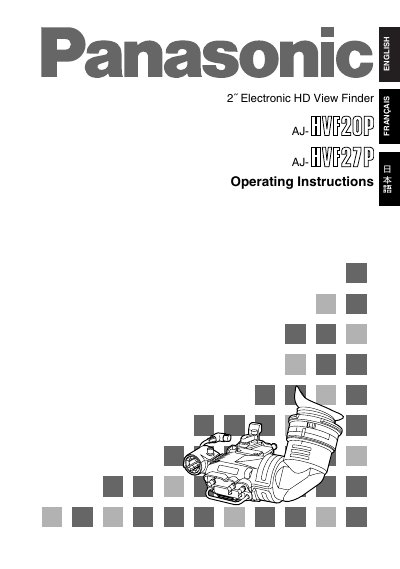

This document provides operating instructions for the Panasonic 2-inch Electronic HD View Finder models AJ-HVF20P and AJ-HVF27P. It details key features such as high-resolution CRT technology, low-flare screens, and detachable eyepieces designed to improve focusing ease and viewing comfort.
| Power supply | DC 12 V (supplied by camera) |
|---|---|
| Picture tube size | 2-inch high-resolution monochrome picture tube |
| Image system (AJ-HVF20P) | 1080 lines, 59.94 Hz |
| Image system (AJ-HVF27P) | 720 lines, 59.94 Hz |
| Power consumption (AJ-HVF20P) | 3.3 W |
| Allowable temperature range | 32°F to 104°F (0°C to 40°C) |
| Weight | 960 g |
It adjusts the outlines of the images in the viewfinder to make focusing easier.
No, the setting of these controls has no effect on the output signal of the camera.
Detach the two screws, replace the three screws in new positions to change the metal fitting, and secure it with the two screws.
