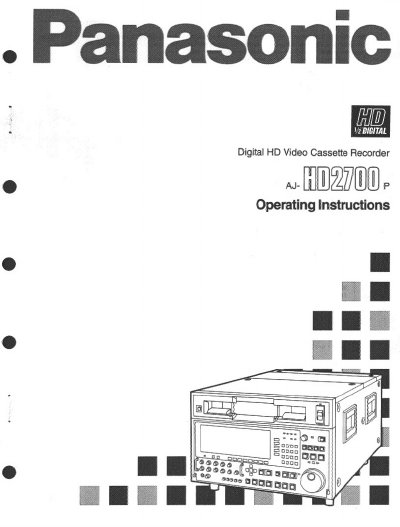

Panasonic AJHD2700P Digital HD Video Cassette Recorder Operating Instructions

About this manual

This document provides operating instructions for the Panasonic AJHD2700P Digital HD Video Cassette Recorder. It details safety precautions, power supply requirements (AC 120V), and proper usage of metal tapes only.

The manual covers comprehensive features including simultaneous playback monitoring, digital signal recording, and various editing functions such as manual insert/assemble editing and automatic spot erase. It also explains menu navigation for video/audio output settings, time code management, cue points, and system testing procedures.

What's inside

• Operating precautions
• Features
• Specifications
• Controls and their functions
• Connections
• Video tapes
• Recording operations
• Playback operations
• Manual editing
• Automatic insert/assemble editing

Specifications

Frequently asked questions

What type of tapes can be used with this recorder?

Only designated metal tapes should be used; ordinary VHS tapes cannot be used.

What type of tapes are required for this VTR?

This VTR is designed for metal tapes only, and ordinary VHS tapes cannot be used.

What power supply voltage is required for operation in the U.S.A. and Canada?

An AC 120 V power supply must be used when operating the unit in the U.S.A. and Canada.

What should be done before opening the unit to change switches or circuit boards?

You must turn off the power prior to opening the unit before changing the position of any switch or removing circuit boards.
