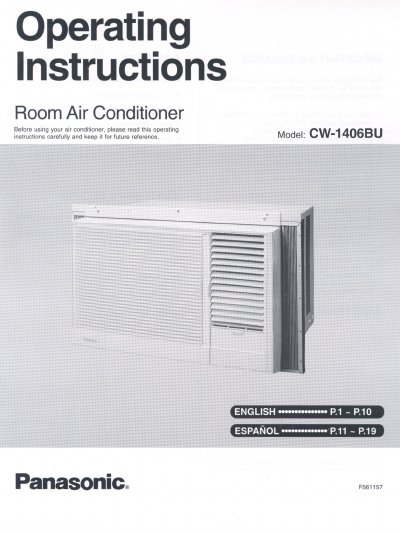

This document provides operating instructions for the Panasonic CW-1406BU room air conditioner. It details how to use the control panel features, including the timer, airflow direction adjustment, and operation modes such as Regular and Economy settings. The manual also explains proper installation precautions and safety guidelines.
| Cooling Capacity | 13,500 Btu/h |
|---|---|
| Voltage | 115 V |
| Frequency | 60 Hz |
| Current Draw | 12.0 Amps |
| Power Consumption | 1420 Watts |
| Dehumidification Rate | 3.4 Pints/hr |
| Air Circulation | 390 Cf/min |
In Regular mode, the fan runs continuously whenever the unit is operating. In Economy mode, both the fan and compressor turn off when the room temperature reaches the preset point.
The air filter should be cleaned every two weeks.
Wait at least three minutes before restarting, as an automatic protection device prevents immediate restart.
