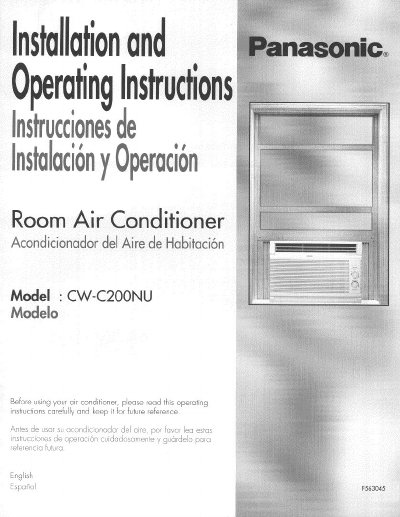

This document provides installation and operating instructions for the Panasonic CW-C200NU room air conditioner. It includes a list of included parts, suggested tools, and step-by-step guidance on how to install the unit in a window frame safely.
The manual also covers product specifications such as cooling capacity and electrical ratings, important safety precautions regarding power supply and maintenance, basic operation procedures, energy-saving tips, care instructions, and troubleshooting for common issues like insufficient cooling or water leakage.
| Cooling Capacity | 20,000 - 20,300 Btu/h |
|---|---|
| Frequency | 60 Hz |
| Voltage | 208 - 230 V |
| Current | 10.3 - 9.5 amps |
| Input Power | 2,100 - 2,130 watts |
| EER | 95 Btu/watt-h |
| Moisture Removal | 59 pints/h |
| Air Circulation | 510 Cf/min |
| Height | 16-7/8 inches |
| Width | 26 inches |
| Depth | 28-25/32 inches |
| Net Weight | 138 lbs |
A temperature difference of more than 14.4°F between intake and outlet air is considered normal after 15 minutes of operation.
Check if the unit is tilted inwards; tilt it slightly outwards, or check if the drain pan is blocked.
