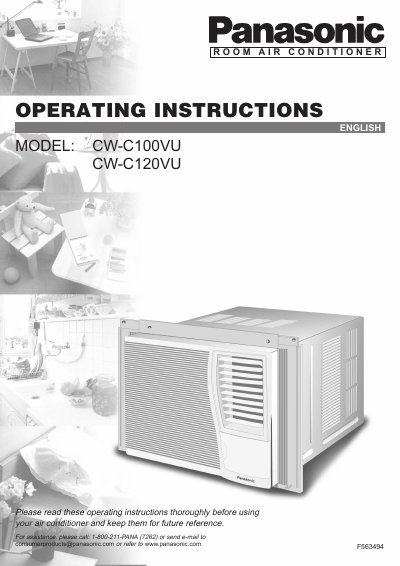

This document is the operating instructions for the CW-C100VU and CW-C120VU models of air conditioners, providing detailed information on installation and usage precautions, as well as safety measures.
This document provides operating instructions for the Panasonic CW-C100VU and CW-C120VU room air conditioners. It details essential safety precautions regarding electrical supply, installation location, and usage to prevent fire or injury.
The guide covers installation procedures including window requirements, cabinet assembly, chassis installation, and attaching optional components like the front grille and drain pan. It also explains how to operate the unit using the main control knob and thermostat.
| Rated Voltage | 115V |
|---|---|
| Fuse Rating | 15 Amps |
Yes, the unit may also be installed 'through the wall', provided standard carpentry practices are observed.
No, avoid using extension cords. If necessary, use a UL listed 3-wire grounding type rated at least 15 amps.
The ventilation lever controls whether room air is drawn out; it must be in the CLOSE position for best cooling conditions.
