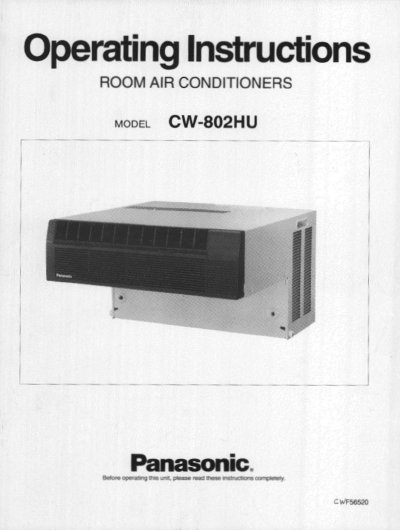

This document provides operating instructions for the Panasonic CW-802HU room air conditioner. It details how to install the front grille, operate the temperature and fan controls, and adjust air direction using up-and-down and side-to-side louvers. The guide also includes specific notices regarding coil frosting during certain weather conditions.
| Cooling Capacity | 8,000 Btu/h |
|---|---|
| Voltage | 115 V |
| Current | 7.5 Amps |
| Input Power | 875 Watts |
| EER | 91 Btu/Watt-h |
| Moisture Removal | 27 Pints/h |
| Room Air Circulation | 190 Cf/min |
| Height | 13-13/32 inches |
The air-filter should be cleaned at least once every two weeks, or more often if local conditions warrant.
Frosting is most likely when the outside temperature drops to approximately 21°C — 24°C (low 70s).
Turn the MAIN CONTROL SWITCH to the 'HIGH FAN' position to defrost the coil.
Extension cords should not be used unless necessary, in which case a UL listed 3-wire grounding type rated for 15 amps is required.
