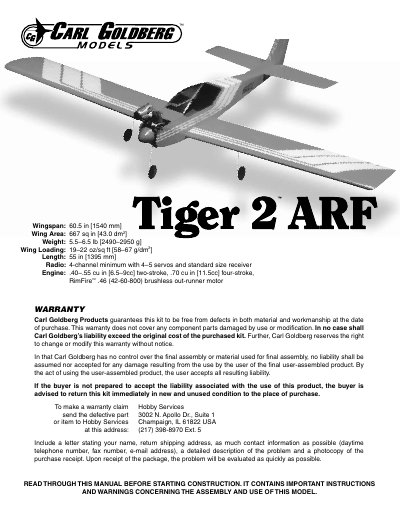

Instruction manual, introducing the assembly and use of the product, including wingspan, wing area, weight, wing load, length, required radio, engine and other information.
This manual provides instructions for assembling the Carl Goldberg Tiger 2 ARF, a low-wing trainer airplane designed for easy construction and smooth aerobatics. It covers building wing panels, installing control surfaces, and assembling the fuselage with landing gear. The guide includes specific steps for installing both glow engines and brushless outrunner motors, along with recommendations for required hardware and accessories.
| Wingspan | 60.5 in [1540 mm] |
|---|---|
| Weight | 5.5-6.5 lb [2490-2950 g] |
| Length | 55 in [1395 mm] |
| Radio Requirement | 4-channel minimum with 4-5 servos |
| Engine Recommendation | .40-.55 cu in [6.5—9cc] two-stroke |
| Brushless Motor Option | RimFire .46 (42-60-800) brushless out-runner |
A minimum 4-channel radio system with four 44 oz.-in. minimum standard servos is required.
The recommended engine size is a .40-.55 cu in two-stroke, .70 cu in four-stroke, or a RimFire .46 brushless motor.
An 11x5.5E APC propeller is suggested if using the recommended RimFire brushless motor.
A 5S battery configuration can be used for moderate power, or a 6S configuration for better performance.
