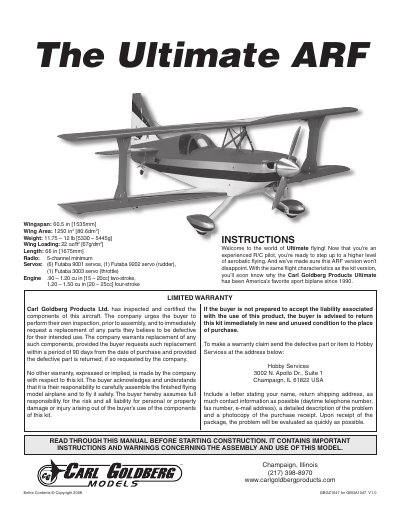

This is a flying model assembly manual. It provides important instructions and warnings for the assembly and use of this model. It also provides the warranty terms for this model.
This manual provides step-by-step instructions for assembling the Carl Goldberg Products Ultimate ARF model airplane. It covers the preparation of required items, construction of the wings and fuselage, installation of the engine and radio systems, and final assembly steps including wing attachment and control surface setup. The document emphasizes safety warnings and the buyer's responsibility for inspecting components before assembly.
| Wingspan | 60.5 in [1535mm] |
|---|---|
| Wing Area | 1250 in2 [80.6dm2] |
| Weight | 11.75 – 12 lb [5330 – 5445g] |
| Length | 66 in [1675mm] |
| Radio Requirement | 5-channel minimum |
| Servo Requirement | (6) Futaba 9001 servos, (1) Futaba 9202 servo (rudder), (1) Futaba 3003 servo (throttle) |
| Engine (2-Stroke) | .90 – 1.20 cu in [15 – 20cc] |
| Engine (4-Stroke) | 1.20 – 1.50 cu in [20 – 25cc] |
The company warrants replacement of defective components if the buyer requests such replacement within 90 days from the date of purchase.
The model is designed to fly on 2-stroke engines from .90 to 1.20 cu in or 4-stroke engines from 1.20 to 1.50 cu in.
A 5-channel radio system with seven standard servos is required for this plane.
