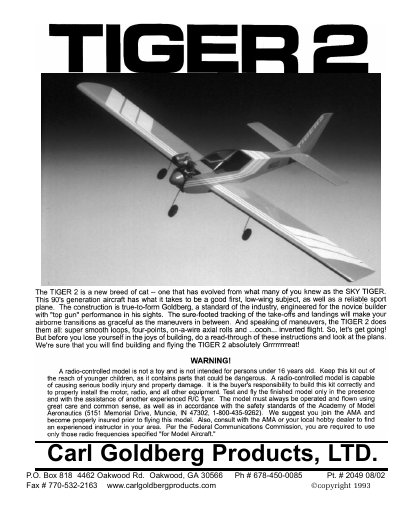

Carl Goldberg TIGER 2 Model Airplane Assembly Manual
This manual provides instructions for building the Carl Goldberg TIGER 2, a low-wing radio-controlled sport plane designed for novice builders. The aircraft is described as a reliable subject for learning maneuvers such as loops, rolls, and inverted flight. The kit includes various wood parts made from balsa, bass, birch, and plywoods, along with necessary hardware.
Read onlineCARL TIGER 2 specifications
| Wingspan | 60.5 in [1540 mm] |
|---|---|
| Weight | 5.5-6.5 lb [2490-2950 g] |
| Length | 55 in [1395 mm] |
| Radio Requirement | 4-channel minimum with 4-5 servos |
| Engine Recommendation | .40-.55 cu in [6.5—9cc] two-stroke |
| Brushless Motor Option | RimFire .46 (42-60-800) brushless out-runner |
Source: Carl Goldberg Tiger 2 ARF Assembly and Operation Manual
All CARL TIGER 2 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What radio equipment is required for the Tiger 2 ARF?
A minimum 4-channel radio system with four 44 oz.-in. minimum standard servos is required.
From: Carl Goldberg Tiger 2 ARF Assembly and Operation Manual
What engine sizes are recommended for this model?
The recommended engine size is a .40-.55 cu in two-stroke, .70 cu in four-stroke, or a RimFire .46 brushless motor.
From: Carl Goldberg Tiger 2 ARF Assembly and Operation Manual
What age is required to build this model?
A radio-controlled model is not intended for persons under 16 years old.
What type of engine is required for the TIGER 2?
The kit requires a .35-.45 2 cycle or .40-.50 cycle engine.
