This document is a product manual that provides safety information, warnings, and usage and maintenance guidelines. The product is a video board, model AW-PF1101W.

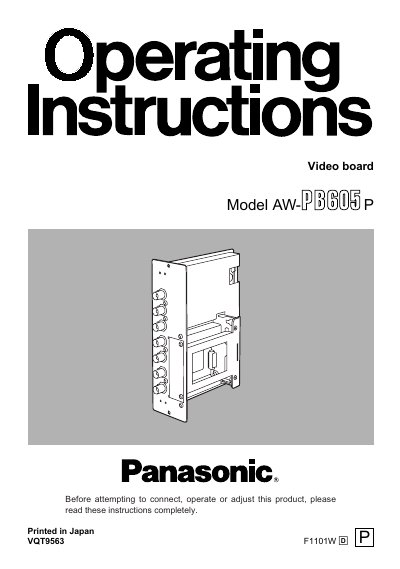

This document provides operating instructions for the Panasonic AW-PB605P video board, which is designed exclusively for use with the AW-RP605 Multi-Function Controller. Up to four of these boards can be added to the controller to control up to five pan-tilt head systems in total. The manual details safety precautions, such as ensuring power is off before connecting cables and handling the board carefully to avoid static discharge.
| Power supply | DC 10.8 V to DC 16 V |
|---|---|
| Power consumption | 4.8 W |
| Operating temperature | 14°F to 113°F (-10°C to +45°C) |
| Storage temperature | -4°F to +140°F (-20°C to +60°C) |
| Supported optional cards | AW-PB302, AW-PB304, AW-PB307, AW-PB309 |
It is designed exclusively for use with the AW-RP605 Multi-Function Controller.
Up to four of these video boards can be added, allowing for a total of five video boards.
The installation work must be performed by your dealer.
