This document introduces Panasonic's up/down wall mount kit and up/down stand kit, which can allow elite Panaboard to be adjusted to the desired height and install the projector at the top of the stand for use, so that the screen surface will not be blocked by the projector, making the use of elite Panaboard more convenient.

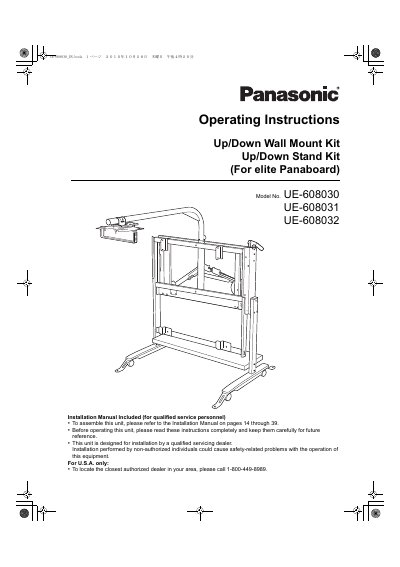

This manual provides operating instructions for the Panasonic Up/Down Wall Mount Kit and Up/Down Stand Kit, specifically designed for use with the Panasonic elite Panaboard. These kits allow the board to be adjusted to the desired height, accommodating both small children and older users, and can be used with a projector mounted at the top to reduce shadows on the screen surface.
The document covers safety precautions, installation checkpoints, and procedures for moving the elite Panaboard up or down. It also details how to use the included accessories, such as the projector arm, safety brake, pin end stoppers, and casters, ensuring safe operation and preventing injury or equipment damage.
The unit is designed for installation by a qualified servicing dealer, and installation performed by non-authorized individuals could cause safety-related problems.
When moving the stand, another person should help to prevent injury, and the casters must be locked after installation or moving to prevent the stand from overturning.
Items should be placed toward the rear of the board to prevent them from being sandwiched between the table plate and the elite Panaboard during movement.
