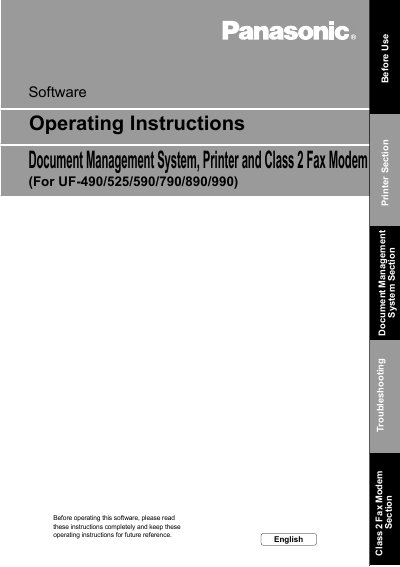

Panasonic UF-490/525/590/790/890/990 Troubleshooting Document Management Printer Operating Instructions

This manual describes the usage of UF-490/525/590/790/890/990 printers, fax modems and document management systems.

Brand: Panasonic
Category: Fax machine
Document type: User Manual
Language: English
Pages: 162
File format: PDF
File size: 6.9 MB
Published: 08 August, 2012
Updated: 30 September, 2023
Models: UF-525, UF-490, UF-590, UF-790, UF-890, UF-990
MD5 checksum: 44F14CA18450DD6F79EEF21DC4161085
PDF: Panasonic UF-490/525/590/790/890/990 Troubleshooting Document Management Printer Operating Instructions PDF

About this manual

This manual provides operating instructions for the Panasonic UF-490/525/590/790/890/990 Troubleshooting Document Management Printer. It covers the installation of the printer driver for various Windows operating systems, including Windows 95/98/Me, Windows NT 4.0, and Windows 2000. The guide details how to configure printer driver settings and manage print operations from Windows applications or over a network.

What's inside

Before Use
Precautions
External View
Installing the Printer Driver
Configuring the Printer Driver Settings
Print Operation
Installing the Document Management System
Document Manager
Document Scanner
Troubleshooting

Specifications

Sleep Mode Default	1 hour
Parallel Interface Cable Max Length	20 ft (6m)
Cable Specification	IEEE 1284

Frequently asked questions

What happens if the printer is in Sleep mode when a print command is sent?

An error message "LPT1 write error." will appear on the computer.

How can I prevent the printer from entering Sleep mode?

Change the Fax Parameter #34 from "3" (SLEEP) to "2" (ENERGY-SAVER).

What cable is required for the parallel interface connection?

A cable of IEEE 1284 specifications with a maximum length of 20 ft (6m).
