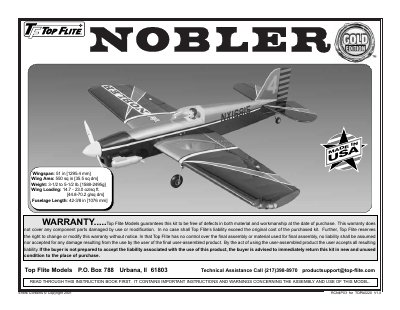

This manual describes the assembly and use of the Top Flite Models 51-inch wingspan airplane.
This manual provides step-by-step instructions for assembling the Top Flite Gold 30th Anniversary Edition R/C Nobler model airplane. It covers decisions regarding engine selection and landing gear configuration, followed by detailed building steps for the tail, fuselage, wing, and final construction.
| Wingspan | 51 in [1295.4 mm] |
|---|---|
| Wing Area | 550 sq in [35.5 sq dm] |
| Weight | 3-1/2 to 5-1/2 lb. [1588-2495g] |
| Fuselage Length | 42-3/8 in [1076 mm] |
| Recommended 2-stroke engine | .25 to .46 cu. in. [4.1 to 7.5cc] |
| Recommended 4-stroke engine | 40 to .52 cu. in. [6.5 to 8.5cc] |
The recommended engine size is .25 to .46 cu. in. for 2-stroke engines or 40 to .52 cu. in. for 4-stroke engines.
Yes, you may build the model with either fixed or retractable landing gear, though the kit supplies hardware only for fixed gear.
The model has been engineered to allow the installation of up to 7 servos.
