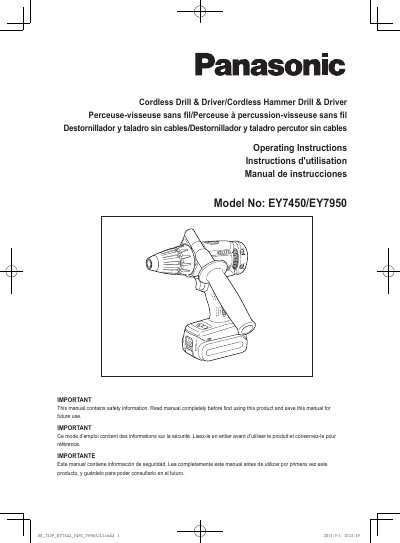

Panasonic EY7450-MUL Manual

This manual contains safety information for the EY7450/EY7950 Cordless Drill. Read this manual completely before using the product and save this manual for future reference.

Brand: Panasonic
Category: Automation control Equipment
Document type: User Manual
Language: English
Pages: 48
File format: PDF
File size: 2.8 MB
Published: 07 August, 2012
Updated: 30 September, 2023
MD5 checksum: 9BF481AF6518908D0096D9F1538D836E
PDF: Panasonic EY7450-MUL Manual PDF

About this manual

This manual provides operating instructions for the Panasonic EY7450/EY7950 Cordless Drill & Driver/Cordless Hammer Drill & Driver. It details the tool's components, including the keyless drill chuck, clutch handle, speed selector switch, and LED light controls. The document emphasizes reading all safety information before first use to prevent electric shock, fire, or serious injury.

What's inside

Functional Description
Limited Warranty
General Safety Rules
Specific Safety Rules
Battery Tool Use and Care

Frequently asked questions

What materials can the model EY7950 drill in hammer mode?

The model EY7950 can be used to drill holes in soft concrete and similar materials in hammer mode.

What is the maximum distance for water testing on the tool?

Water testing is performed from a distance of 3 meters.

What is the minimum inner diameter of the nozzle used for water testing?

The nozzle used for water testing has an inner diameter of 12.5 mm.
