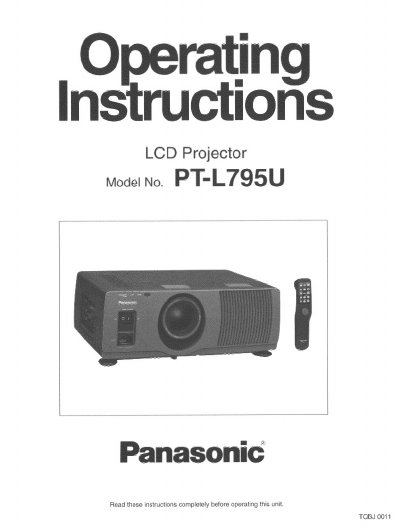

This manual provides operating information for the Panasonic PT-L795U LCD projector. It details features such as a 1.3-inch polysilicon panel and 650 ANSI lumens of brightness, allowing projection on screens from 30 to 300 inches with front or rear projection methods.
The guide covers essential topics including safety precautions, location of parts, remote control usage, menu operations, power settings, picture adjustments (including white balance and video size), sound adjustment, and automatic position correction. It also includes instructions for cleaning the air filter, replacing the lamp unit, and system configuration.
| Panel Type | 1.3-inch (diagonal) polysilicon LCD panel |
|---|---|
| Lamp Power | 280-W metal halide lamp |
| Brightness | 650 ANSI lumens |
| Resolution | XGA (1024 X 768) |
| Screen Size Range | 30 inches to 300 inches |
| Weight | 22.0 lbs (10.0 kg) |
The projector can project onto screens ranging in diagonal size from 30 inches to 300 inches.
Yes, a projection method switching function is provided for switching between front and rear projection.
The manual advises asking an Authorized Service Center to clean inside the projector at least once a year.
The PT-L795U uses a 280-W metal halide lamp.
