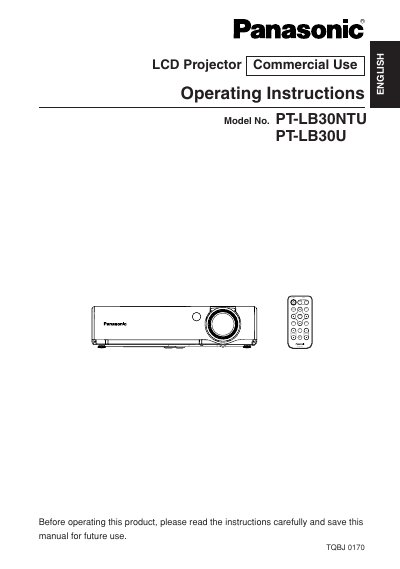

Panasonic PT-LB30NTU/PT-LB30U LCD Projector Operating Instructions

About this manual

This manual provides comprehensive operating instructions for the Panasonic PT-LB30NTU and PT-LB30U commercial LCD projectors. It covers essential safety precautions, initial preparation including unpacking and accessory identification, and step-by-step guidance on setting up the projector for various projection methods such as front, rear, ceiling, or wall mounting.

The guide details how to connect the projector to computers and video equipment, perform basic operations like turning power on/off, adjusting picture settings (brightness, color, keystone correction), and utilizing network features. It also includes specific instructions for care, maintenance, cleaning air filters, replacing the lamp unit, and troubleshooting common issues.

What's inside

• Preparation
• Safety Precautions
• Getting Started
• Setting Up
• Connections
• Basic Operation
• Adjustments and Settings
• Network Setup
• Care and Maintenance
• Specifications

Specifications

Frequently asked questions

What is the power supply requirement for this projector?

The projector is designed to operate on 100 V - 240 V, 50 Hz/60 Hz AC house current.

Can I use the accessory power cord for voltages higher than 125V?

No, the supplied accessory cord can only be used for power supplies up to 125 V, 7 A; a separate 250 V cord is needed otherwise.
