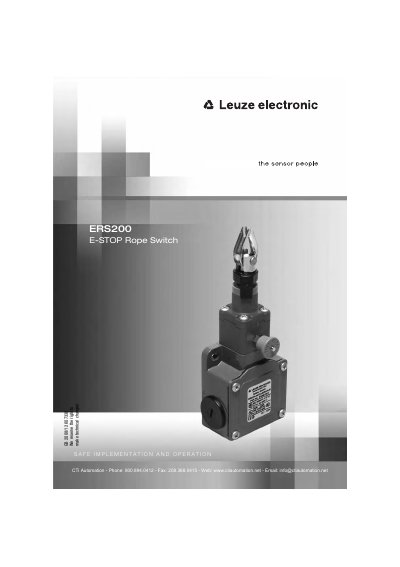

ERS200 E-STOP Rope Switch is a device for safe implementation and operation. This document provides guidance on the use, installation, and maintenance of the device.
This document provides operating instructions for the ERS200 E-STOP Rope Switch, a supplementary protective measure for shutting down machinery in an emergency. The device is designed to actuate via a rope and must be mounted, connected, and started-up by trained personnel in accordance with relevant safety standards such as EN ISO 13850-1 and EN 60204-1.
The manual details the device description, including its metal housing and glass-fibre-reinforced actuator head with an IP 67 protection rating. It covers functions, applications, and step-by-step procedures for mounting the actuator head and the switch itself, as well as connecting the contact block. Additionally, it outlines requirements for setting the device into service, performing regular testing, cleaning, and disposal.
| Protection rating | IP 67 |
|---|---|
| Housing material | metal |
| Actuator head material | glass-fibre-reinforced and non-combustible plastic |
| Actuator head rotation | 90° increments |
No, it is a supplementary protective measure and must not be used as a replacement for other protective devices.
The manufacturer of the machine is responsible for the safe implementation of the E-STOP command device.
