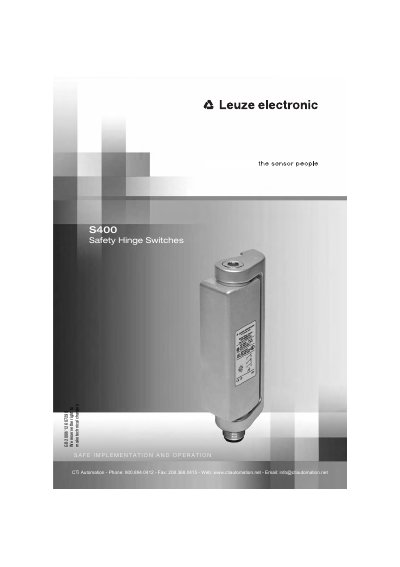

This document describes the implementation and operation of the S400 Safety Hinge Switch. The document includes descriptions of the device, its functions, applications, mounting, electrical connection, device setup, testing, cleaning, disposal, service and support, accessories, and technical data.
This document provides operating instructions for the S400 Safety Hinge Switches, a compact and stable electromechanical switching device designed for safety interlocking applications. The device features a metal housing with an IP 67 protection rating and an integrated actuator. It is available with either a 2-meter cable or an M12 plug connection.
The manual details the proper use, mounting procedures, and electrical connection requirements for the switch. It emphasizes the need for competent personnel to perform installation and testing to ensure safety compliance with standards such as EN ISO 13849-1 and EN 60204-1. The document also covers maintenance, cleaning, disposal, and lists technical specifications.
| Protection rating | IP 67 |
|---|---|
| Opening angle | up to 180° |
| Switching angle | adjustable |
| Cable length | 2m |
| Plug type | M12 plug, 8-pin |
The manufacturer of the machine is responsible for the safe implementation of the Safety Hinge Switch.
The opening angle of the Safety Hinge Switch extends up to 180°.
The device satisfies protection rating IP 67.
Depending on the version, the electrical connection is established via a cable or an M12 plug.
