This is a user manual for the Digital DSS Console. It introduces the features and characteristics of the product, including connection, operation board angle adjustment, etc.

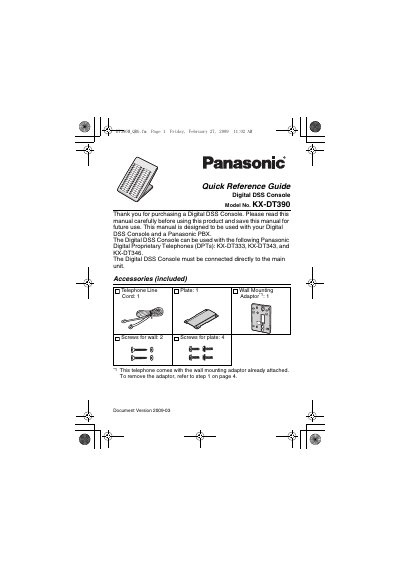

This document is a quick reference guide for the Panasonic KX-DT390 Digital DSS Console. It details the included accessories, such as the plate, telephone line adaptor, and screws, and explains how to connect the unit directly to a main Panasonic PBX.
The guide provides instructions on locating controls, adjusting the operation board angle to one of eight positions, and attaching compatible Digital Proprietary Telephones (DPTs). It also includes specific steps for wall mounting the console, ensuring proper clearance, and safety precautions regarding water exposure and electrical noise.
The console can be used with the KX-DT333, KX-DT343, and KX-DT346.
The angle of the operation board can be set to one of eight angles.
The wall must support approximately 1 kg [2.2 lb].
