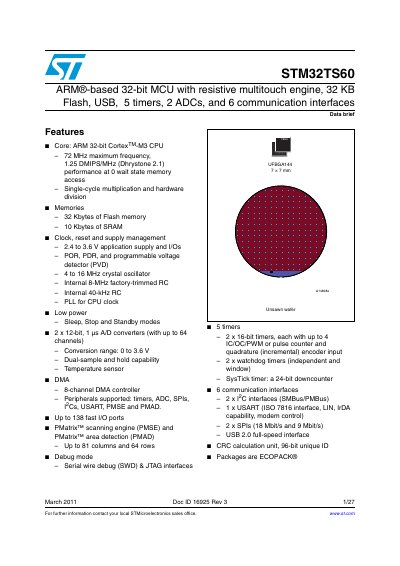

STM32TS60 ARM®-based 32-bit MCU with resistive multitouch engine, 32 KB Flash, USB, 5 timers, 2 ADCs, and 6 communication interfaces
The STM32TS60 is an ARM-based 32-bit microcontroller specifically designed for multitouch touch screen applications. It integrates Stantum's patented digital resistive multitouch technology with a Cortex-M3 CPU operating at up to 72 MHz.
Key features include 32 Kbytes of Flash memory, 10 Kbytes of SRAM, two 12-bit ADCs, and six communication interfaces including USB 2.0 full-speed, SPI, USART, and I2C. The device supports a touch panel matrix of up to 81 columns and 64 rows.
| CPU Core | ARM 32-bit Cortex-M3 |
|---|---|
| Maximum Frequency | 72 MHz |
| Flash Memory | 32 Kbytes |
| SRAM | 10 Kbytes |
| Operating Voltage | 2.4 to 3.6 V |
| Touch Panel Support | Up to 81 columns and 64 rows |
| ADCs | 2x 12-bit, 1 us |
| Timers | 5 timers |
| Communication Interfaces | 2x SPI, 2x I2C, 1x USART, USB 2.0 FS |
It is specifically designed for multitouch touch screen applications based on Stantum's patented digital resistive multitouch technology.
The device operates from -40 to +85 °C ambient and -40 to 125 °C junction.
The device is available in a UFBGA144 7 mm x 7 mm package and die form.
