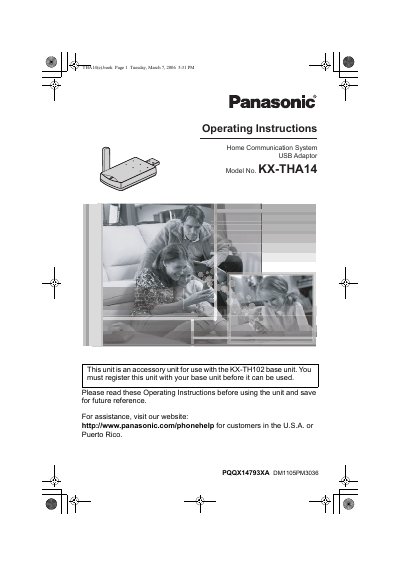

This document is the operating instructions for the Panasonic Home Communication System USB Adapter Model No. KX-THA14. It describes the features and characteristics of the product.
The Panasonic KX-THA14 is a USB Adaptor designed as an accessory for the KX-TH102 Home Communication System base unit. Before use, the unit must be registered with the base unit. It enables users to access the Internet or connect to another computer wirelessly using the MULTI TALK V software included with the base system.
| Operating Temperature | 5°C to 40°C (41°F to 104°F) |
|---|---|
| Frequency | 2.402 GHz to 2.48 GHz |
| Bluetooth Technology | Wireless Bluetooth technology 1.2 |
| Dimensions | Approx. 15mm high x 42 mm wide x 74 mm deep |
| Weight | Approx. 30 g (0.07 lb.) |
| Power Consumption (Standby) | Approx. 0.002 W |
| Power Consumption (Max) | Approx. 0.88 W |
| Output Power | 51 mW (max.) |
| Power Supply | 5 V DC (powered by USB) |
| USB Interface Version | 1.1 |
This unit is an accessory for use with the KX-TH102 base unit.
The two services are PAN (Personal Area Network) and DUN (Dial Up Network).
Up to 3 wireless connections can be established simultaneously.
A maximum of 8 handsets can be registered.
