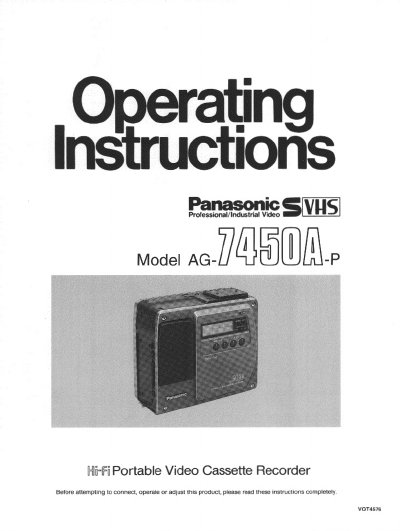

This manual provides instructions for the Panasonic AG-7450 Hi-Fi Portable Video Cassette Recorder. It details two system configurations: an integrated camera recorder system using the optional WV-F70 camera and a separate-type portable system using the optional AG-S745 VTR adaptor. The document covers features such as the S-VHS system with amorphous heads for high resolution, Hi-Fi audio recording with Dolby noise reduction, and various operational controls.
| Horizontal Resolution | over 400 lines |
|---|---|
| Audio System | 4-channel system |
| Compatible Camera | WV-F70 |
| Compatible VTR Adaptor | AG-S745 |
| Compatible Time Code Generator | AG-F745 |
| Compatible AC Adaptor | AG-B640 |
| Compatible Earphone | optional |
| Compatible Microphones | XLR (option) |
| Compatible Battery Pack | AU-BP220 |
| Compatible Battery Pack | AG-BP212 |
| Compatible Monitor Television | optional |
The system produces a horizontal resolution of no less than 400 lines.
The recording is made by the VHS system regardless of the position of the switch.
To stop the audio dubbing, press the Stop button.
