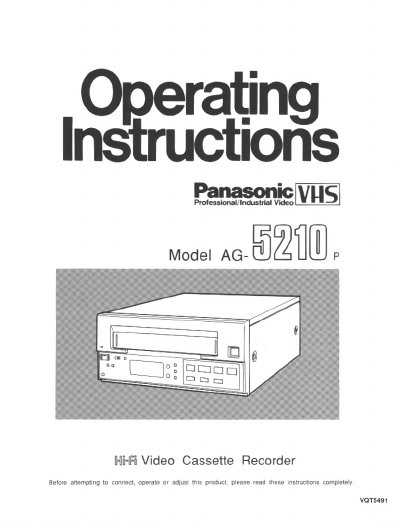

This manual provides instructions for the Panasonic AG-5210P Hi-Fi Video Cassette Recorder. It details the features of the unit, including SP, LP, and SLP recording modes, Hi-Fi audio capabilities, and search playback functions. The document explains how to connect the recorder to a TV monitor and how to use the various controls on the front and rear panels.
| Power Source | 120V AC, 50-60Hz |
|---|---|
| Power Consumption | Approx. 17 watts |
| Television System | EIA Standard (525 lines, 60 fields) |
| Video Recording System | NTSC color signal |
| Tape Format | Tape width 1/2 inch (12.7 mm), high density [VHS] tape |
| Recording/Playback Time (SLP) | 360 min. with NV-T120 used in SLP mode |
| Weight | Approx. 11.2lbs. (5.1kg) |
| Dimensions | 10-3/4"(W) x 13-9/16"(D) x 4-3/4"(H) |
The unit supports SP (2-hour), LP (4-hour playback only), and SLP (6-hour) modes.
Press the Tracking '+' and '-' buttons simultaneously to automatically adjust the tracking.
Yes, using the optional remote controller AG-A11, you can operate the unit about 5 meters away.
