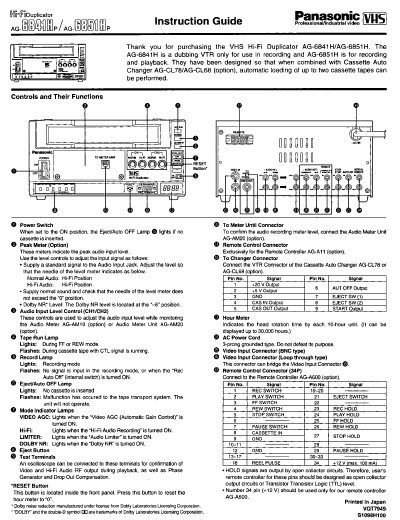

This document serves as an instruction guide for the Panasonic AG-6841H and AG-6851H VHS Hi-Fi Duplicators. The AG-6841H is designed for dubbing VTR only, while the AG-6851H supports both recording and playback. When combined with the Cassette Auto Changer AG-CL78 or AG-CL68 option, these units can automatically load up to two cassette tapes.
| Power Source | 120 V AC, 50-60 Hz |
|---|---|
| Power Consumption | 31W max. |
| Television System | EIA Standard (5285 lines, 60 fields) NTSC color signal |
| Video Recording System | 2 rotary heads, helical scanning system |
| Tape Format | Tape width 1/2 inch (12.7 mm), high density tape |
| Tape Speed | 1-5/16 i.p.s. (33.35 mm/s) |
| Recording Time | 120 min. with NV-T120 |
| FF/REW Time | Less than 3.0 min. with NV-T120 |
| Weight | 14.96 lbs. (6.8 kg) |
| Dimensions | 10-5/8"(W) X 5-11/16"(H) X 14-9/16"(D) |
The AG-6841H is a dubbing VTR only, while the AG-6851H is for recording and playback.
The AG-6841H is a dubbing VTR used only for recording, while the AG-6851H is designed for both recording and playback.
The unit measures 10-5/8 inches wide, 5-11/16 inches high, and 14-9/16 inches deep.
The unit can record for up to 120 minutes when using an NV-T120 cassette.
