This document is an operating instruction for a combination VCR, including basic operation, TV operation, timer operation, and advanced operation. It also includes installation and connection precautions, as well as information on the product's energy efficiency.

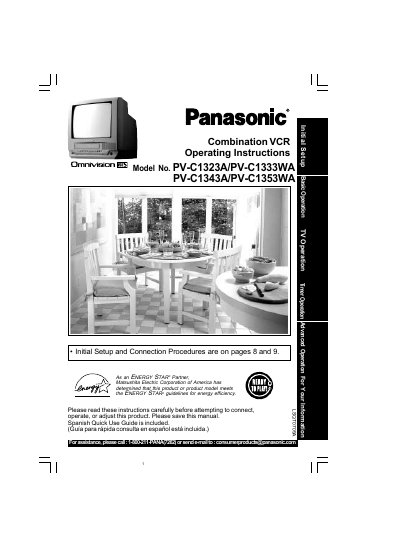

This manual provides operating instructions for the Panasonic Combination VCR. It covers initial setup, connection procedures, safety precautions regarding power sources and ventilation, and general usage guidelines including head cleaning and battery replacement.
The document details specific features such as Digital Auto Tracking, Manual Tracking Control, and V-Lock Control (for certain models). It also includes technical specifications for the 13-inch picture tube, helical scanning system, tuner capabilities, and power consumption.
| Picture Tube Size | 13 inch measured diagonal 90° deflection Picture Tube |
|---|---|
| Audio Track | 1 track |
| Power Source | 120 V AG, 60 Hz |
| Power Consumption (On) | Approx. 69 watts |
| Operating Temperature | 5 °C ~ 40 °C (41 °F ~ 104 °F) |
| Weight | 12 Kg (26.4 lbs.) |
Use a 'dry' type head cleaning cassette only, such as Part No. NV-TCL30PT.
A screen appears during playback indicating that a head cleaning cassette needs to be inserted.
