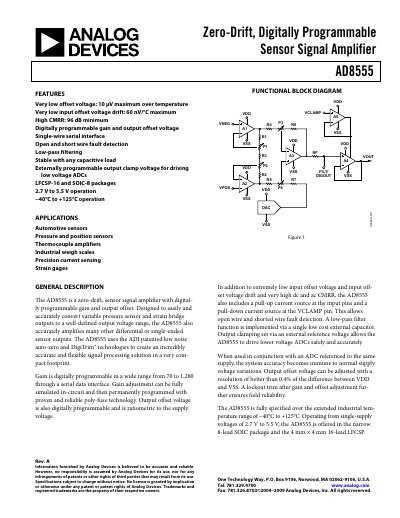

This document describes the features and characteristics of the AD8555 Rev. A digitally programmable sensor signal amplifier, including very low offset voltage, low offset voltage drift, high CMRR, digitally programmable gain and output offset voltage, etc.
The AD8555 is a zero-drift, sensor signal amplifier with digitally programmable gain and output offset. It is designed to accurately convert variable pressure sensor and strain bridge outputs to a well-defined output voltage range. The device uses Analog Devices' patented low noise auto-zero and DigiTrim technologies to provide an accurate and flexible signal processing solution in a compact footprint.
Gain is digitally programmable in a wide range from 70 to 1,280 through a serial data interface. Output offset voltage is also digitally programmable and is ratiometric to the supply voltage. The AD8555 includes features such as open and short wire fault detection, low-pass filtering, and is stable with any capacitive load.
| Input Offset Voltage | 10 pV maximum over temperature |
|---|---|
| Input Offset Voltage Drift | 60 nV/°C maximum |
| Common-Mode Rejection Ratio | 96 dB minimum |
| Gain Range | 70 to 1,280 |
| Operating Temperature Range | -40°C to +125°C |
| Supply Voltage | 2.7 V to 5.5 V |
| Packages | LFCSP-16 and SOIC-8 |
The maximum input offset voltage over temperature is 10 pV.
The gain is digitally programmable in a range from 70 to 1,280.
Yes, the AD8555 is stable with any capacitive load.
