The document describes the features of the OP113/OP213/OP413 series single-supply operational amplifiers, including low noise, low drift, wide bandwidth, low offset voltage, and low drift. They are suitable for applications such as digital scales, multimedia, strain gauges, and battery-powered instrumentation.

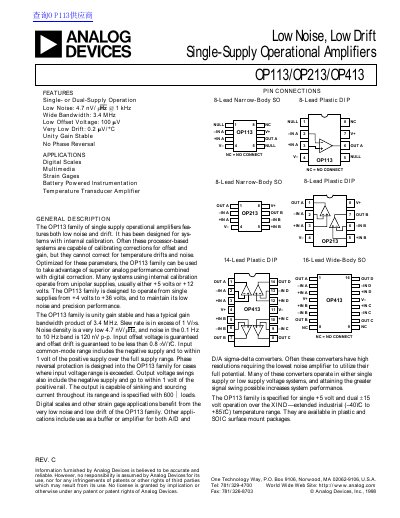

This datasheet details the features of the Analog Devices OP113 family of single supply operational amplifiers, which feature both low noise (4.7 nV/√Hz @ 1 kHz) and low drift (0.2 mV/°C). The devices are optimized for systems with internal calibration, such as digital scales and strain gage applications, operating from single supplies ranging from +4 volts to +36 volts.
| Offset Voltage Drift | 0.2 mV/°C |
|---|---|
| Gain Bandwidth Product | 3.4 MHz |
| Supply Voltage Range (Single) | +4 V to +36 V |
| Operating Temperature Range | -40°C to +85°C |
The typical gain bandwidth product is 3.4 MHz.
They operate from –40°C to +85°C in E and F grades.
The absolute maximum supply voltage is ±18 V.
