The 1N4001-1N4007 is a general purpose plastic rectifier produced by Chenyi Electronics. It has a reverse voltage of 50 to 1000 volts and a forward current of 1.0 ampere. The plastic package has Underwriters Laboratory Flammability Classification 94V-0 certification and uses a void-free molded plastic technique. The product has low reverse leakage current, high forward surge current capability and high temperature soldering guarantee.

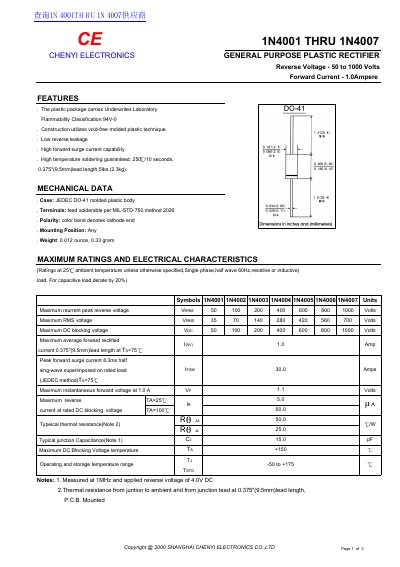

This document is a datasheet for the Chenyi 1N4001 through 1N4007 series of general purpose plastic rectifiers. The devices feature a JEDEC DO-41 molded plastic body with void-free construction and are rated for forward currents up to 1.0 Ampere and reverse voltages ranging from 50 to 1000 Volts.
| Forward Current | 1.0Ampere |
|---|---|
| Reverse Voltage Range | 50 to 1000 Volts |
| Package Type | JEDEC DO-41 molded plastic body |
| Maximum Average Forward Rectified Current | 10 Amp |
| Peak Forward Surge Current | 30.0 Amps |
| Maximum Reverse Current | 5.0 uA |
| Operating Temperature Range | -50 to +175 c |
The plastic package carries Underwriters Laboratory Flammability Classification 94V-0.
The polarity is indicated by a color band that denotes the cathode end.
The typical junction capacitance is 15.0 pF.
