The GBPC25005 THRU GBPC2510 is a single-phase silicon passivated bridge rectifier produced by Shanghai Chenyi Electronics Co., Ltd. Its rated voltage is 50 to 1000V and its rated current is 25A. Its maximum recurrent peak reverse voltage is 50 to 1000V, its maximum average forward rectified current is 25A, its maximum peak forward surge current is 300A, its maximum instantaneous forward voltage is 1.1V, its maximum DC reverse voltage is 10.0V, and its operating temperature range is -55 to +175℃. Its storage and operating temperature range is -55 to +175℃.

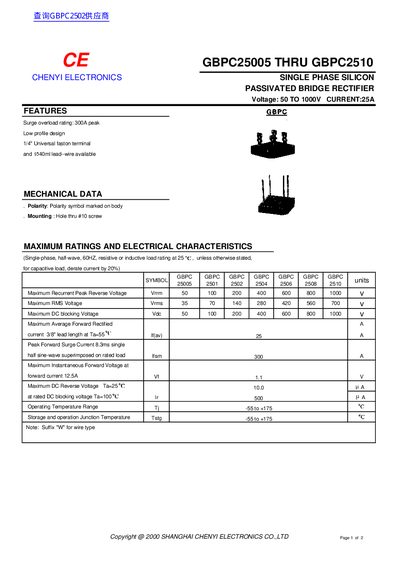

This document is a datasheet for the Chenyi GBPC25005 through GBPC2510 series of single-phase silicon passivated bridge rectifiers. The devices are designed for use with resistive or inductive loads at 60Hz, with a surge overload rating of 300A peak and a low profile design.
| Maximum Average Forward Rectified Current | 25 A |
|---|---|
| Peak Forward Surge Current | 300 A |
| Operating Temperature Range | -55 to +175 °C |
| Storage and operation Junction Temperature | -55 to +175 °C |
| Maximum Recurrent Peak Reverse Voltage | 50 to 1000 V |
The surge overload rating is 300 A peak.
The operating temperature range is -55 to +175 °C.
