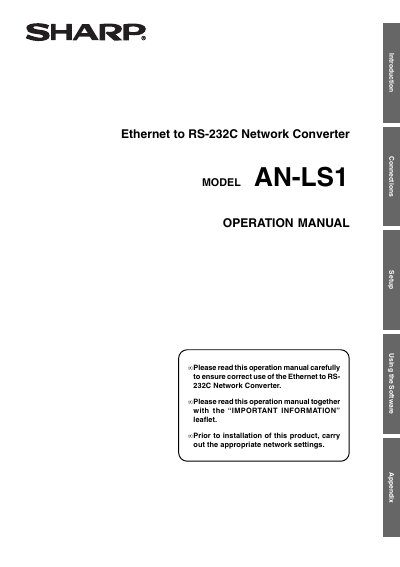

SHARP AN-SL1 Ethernet to RS-232C Network Converter Operation Manual

AN-LS1 is a network converter for converting TCP/IP protocol on Ethernet to serial (RS-232C). AN-LS1 enables Sharp projectors with RS-232C terminals to be controlled via Ethernet. Since AN-LS1 is provided with an RS-232C terminal as well as an Ethernet terminal, control using a commercially available locally installed controller is possible as well as via a network.

Brand: Sharp
Category: Other network devices
Document type: User Manual
Language: English
Pages: 54
File format: PDF
File size: 1022 KB
Published: 03 August, 2012
Updated: 01 October, 2023
MD5 checksum: ADCDF98D574636DE1E51467E6EF44AF5
PDF: SHARP AN-SL1 Ethernet to RS-232C Network Converter Operation Manual PDF

About this manual

The Sharp AN-LS1 is a network converter designed to convert TCP/IP protocol on Ethernet to serial RS-232C. It enables Sharp projectors with RS-232C terminals to be controlled via an Ethernet network or a locally installed controller. The device features LED indicators for power, link status, and data transmission/reception.

What's inside

Outstanding Features
Accessories
Part Names and Functions
LED Indicators
Wall Mount
Connecting to an Ethernet LAN
Connecting Devices
Entering SETUP MENU
Using the Software
Specifications

Specifications

Default IP Address	192.168.150.2
Ethernet Terminal Type	10BASE-T or 100BASE-TX
Cable Requirement	Category 5 cable

Frequently asked questions

What is the default IP address of the AN-LS1?

The default IP address is 192.168.150.2.

What type of cable is required to connect the AN-LS1 to a hub?

A standard straight-through Category 5 cable is required.

How do you initialize the AN-LS1 to factory default settings?

Connect the AC adapter to a wall outlet and press the Initialize (INIT.) button using a pointed tool.
