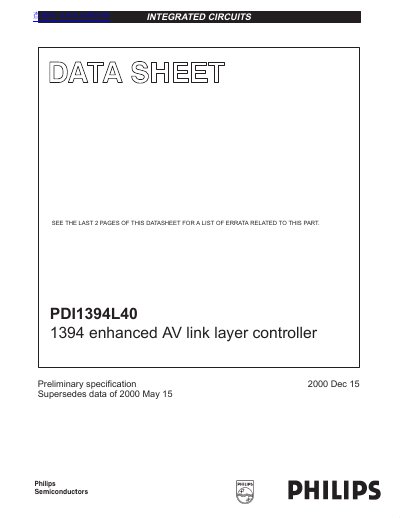

This datasheet contains information about PDI1394L40's features, description, quick reference data, ordering information, pin configuration, functional block diagram, internal block diagram etc.
The Philips PDI1394L40 is an integrated circuit designed as a Full Duplex 1394 Audio/Video (AV) Link Layer Controller. It features compliance with the IEEE 1394a-2000 standard and includes two embedded AV layer interfaces capable of accommodating various MPEG-2 and DVC codecs according to the IEC 61883 International Standard.
The device operates with a single 3.3 V supply voltage and supports both 400/200/100 Mbps physical layer devices. It includes a 12K byte fully programmable FIFO pool for isochronous and asynchronous data, as well as flexible host interface options supporting 8-bit and 16-bit wide data paths.
| Supply voltage range | 3.0 V to 3.6 V |
|---|---|
| Operating current | 110 mA (min) / 200 mA (max) |
| Device clock frequency | 49.147 MHz to 49.157 MHz |
| Package type | LQFP144 |
| Operating temperature range | 0 to +70 °C |
The device is powered by a single 3.3 V power supply.
The temperature range is 0 to +70 °C.
It operates with 400/200/100 Mbps physical layer devices.
