ELH0033G is a fast buffer amplifier with features such as high slew rate, high output drive, short rise and fall times, and high input resistance. It is suitable for applications such as high-speed line drivers and video impedance conversion.

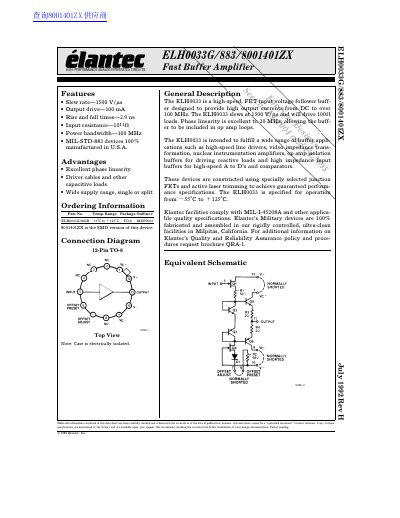

The Elantec ELH0033G/883/8001401ZX is a high-speed buffer amplifier designed to drive reactive loads and high-impedance inputs. It features a slew rate of 1500 V/s, an output drive of 100 mA, and rise/fall times of 2.9 ns. The device is constructed using specially selected FETs and active laser trimming to achieve guaranteed performance specifications.
| Slew Rate | 1500 V/µs |
|---|---|
| Output Drive | 100 mA |
| Rise and Fall Times | 2.9 ns |
| Input Resistance | 10110 Ω |
| Power Bandwidth | 100 MHz |
| Supply Voltage Range | Single or split |
| Voltage Gain | 0.97 to 1.00 |
Yes, MIL-STD-883 devices are 100% manufactured in the U.S.A.
The package outline number is MDP0002.
Yes, the 8001401ZX is the SMD version of the ELH0033 device.
