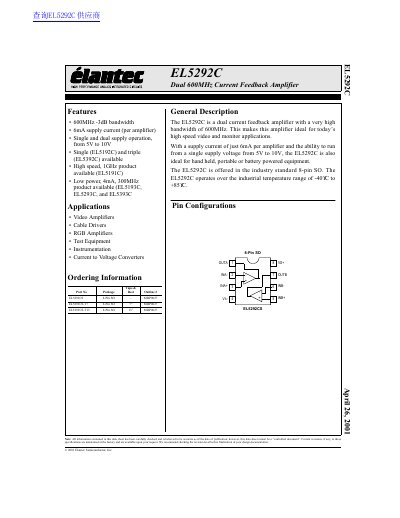

EL5292C is a dual current feedback amplifier with a very high bandwidth of 600MHz. This makes this amplifier ideal for today’s high speed video and monitor applications. With a supply current of just 6mA per amplifier and the ability to run from a single supply voltage from 5V to 10V, the EL5292C is also ideal for hand held, portable or battery powered equipment. The EL5292C is offered in the industry standard 8-pin SO. The EL5292C operates over the industrial temperature range of -40°C to +85°C.
The EL5292C dual current‑feedback amplifier offers a very high –3 dB bandwidth of 600 MHz, making it suitable for high‑speed video, monitor, cable‑driver and instrumentation applications. It runs from a single 5 V‑10 V supply (or ±2.5 V‑±5 V dual) and consumes only 6 mA per amplifier, which is ideal for handheld or battery‑powered equipment. The device is supplied in an 8‑pin SO package and is rated for industrial temperature operation.
Key performance figures include a typical bandwidth of 600 MHz at unity gain, ±95 mA minimum output drive, input offset voltage within ±10 mV, and a common‑mode rejection ratio of 42‑50 dB. The datasheet also provides detailed electrical characteristics, typical performance curves, and layout recommendations for optimal high‑frequency operation.
| Bandwidth (‑3 dB) | 600 MHz |
|---|---|
| Supply Current (per amplifier) | 6 mA |
| Supply Voltage Range | 5 V to 10 V (single) or ±2.5 V to ±5 V (dual) |
| Operating Temperature Range | -40 °C to +85 °C |
| Maximum Output Current | ±95 mA |
| Input Offset Voltage | ±10 mV |
| Package | 8‑pin SO |
It can operate from a single 5 V to 10 V supply or from dual supplies of ±2.5 V to ±5 V.
Each amplifier can deliver a minimum of ±95 mA of output current.
The device provides a –3 dB bandwidth of 600 MHz at unity gain.
It is offered in an 8‑pin SO (small‑outline) package.
