FOD8012 is a full duplex, bi-directional, high-speed logic gate optocoupler that supports isolated communication, allowing digital signals to be transmitted between systems without conducting ground loops. It features high common mode rejection (20kV/µs), high speed performance, 3.3V and 5V CMOS compatibility, extended industrial temperature range, etc.

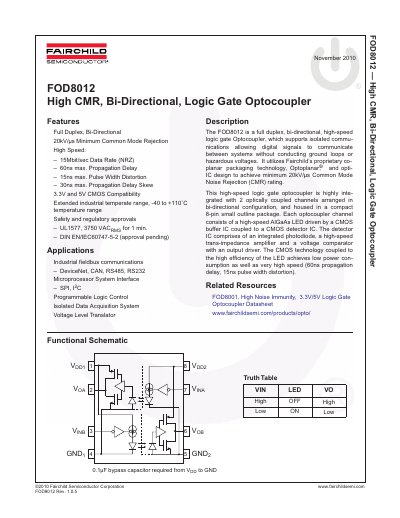

The FOD8012 is a full duplex, bi-directional, high-speed logic gate optocoupler designed to support isolated communications between systems. It utilizes Fairchild's proprietary Optoplanar packaging technology and opti-IC design to achieve a minimum 20kV/us Common Mode Noise Rejection (CMR) rating. The device is housed in a compact 8-pin small outline package and features two optically coupled channels arranged in a bi-directional configuration.
| Data Rate | 15 Mbit/sec |
|---|---|
| Propagation Delay | 60ns max |
| Pulse Width Distortion | 15ns max |
| Propagation Delay Skew | 30ns max |
| Common Mode Rejection | 20kV/us Minimum |
| Operating Temperature Range | -40 to +110°C |
| Supply Voltage (3.3V Operation) | 3.0 to 3.6 V |
| Supply Voltage (5.0V Operation) | 4.5 to 5.5 V |
The FOD8012 is used for industrial fieldbus communications (DeviceNet, CAN, RS485, RS232), microprocessor system interfaces (SPI), programmable logic control, isolated data acquisition systems, and voltage level translation.
The maximum propagation delay is 60ns.
Yes, the device supports 3.3V and 5V CMOS compatibility.
