High Resolution Milliohm Meter

Brand: EXTECH
Category: Other Electronics
Document type: Product Leaflet
Language: English
Pages: 1
File format: PDF
File size: 171 KB
Published: 01 August, 2012
Updated: 30 September, 2023
MD5 checksum: 1EF37E1A46A5FAA490785B3585D3620E

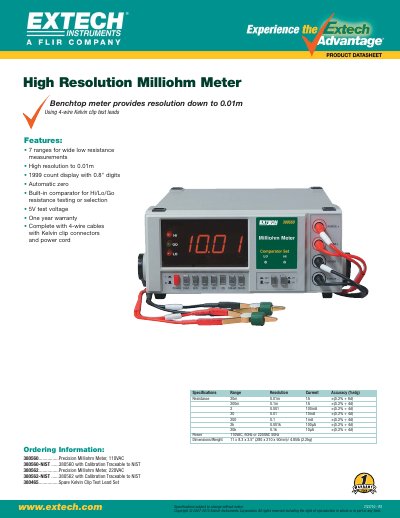

PDF: EXTECH 380560................Precision Milliohm Meter 110VAC 380560-NIST ......380560 with Calibration Traceable to NIST 380562................Precision Milliohm Meter 220VAC 380562-NIST ......38056 PDF

About this manual

The Extech 380560 is a high-resolution benchtop milliohm meter designed for wide low resistance measurements. It features a 1999 count display with 0.8" digits and offers a resolution down to 0.01mΩ across seven ranges.

The device includes an automatic zero function and a built-in comparator for Hi/Lo/Ground resistance testing. It operates with a 5V test voltage and comes complete with 4-wire cables featuring Kelvin clip connectors and a power cord.

What's inside

Specifications
Features
Ordering Information
Range and Resolution
Accuracy
Power Requirements
Dimensions and Weight

Specifications

Resolution	0.01mΩ
Display	1999 count, 0.8" digits
Test Voltage	5V
Ranges	7 ranges
Power Input	110VAC 60Hz or 220VAC 50Hz
Dimensions	11 x 8.3 x 3.5" (280 x 210 x 90mm)
Weight	4.85lb (2.2kg)

Frequently asked questions

What is the resolution of the Extech 380560?

The meter provides a resolution down to 0.01mΩ.

Does the Extech 380560 include test leads?

Yes, it comes complete with 4-wire cables with Kelvin clip connectors.

What power options are available for the Extech 380560?

It supports 110VAC at 60Hz or 220VAC at 50Hz.
