This manual introduces the usage of UM200 micro-ohmmeter.

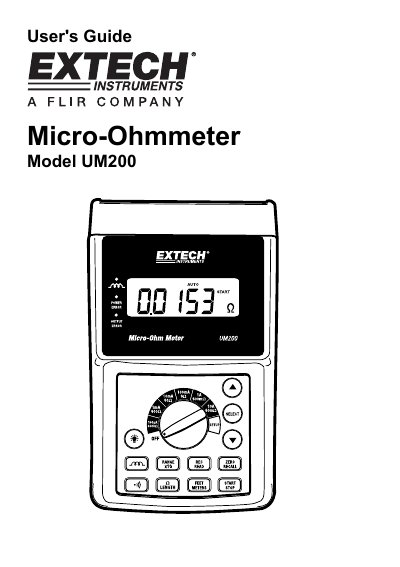

This document is the User's Guide for the Micro UM200 Micro-Ohmmeter. It provides instructions on using the device to measure resistance in both resistive and inductive materials, including features like four-terminal Kelvin measurement, programmable Hi-Lo alarms, and cable length measurement. The guide details the front and rear panel controls, such as the rotary switch for ranges and buttons for recall and setup.
| Resolution | 1 μΩ |
|---|---|
| Accuracy | 0.25% |
| Max Test Current | 10A |
| Measurement Types | Resistive and inductive materials |
| Measurement Method | Four terminal Kelvin measurement |
| Ranging | Manual or Auto Range |
| Alarm Memory | 20 sets of limits |
| Data Memory | 3,000 measurement data |
| Display | 5-digit LCD with backlight |
| Battery | Rechargeable lithium battery (3400mAh) |
The UM200 can measure both resistive and inductive materials.
The device has a memory capacity for 3,000 measurement data records.
The maximum test current is 10A.
Yes, it supports cable length measurement in Feet or Meter units.
