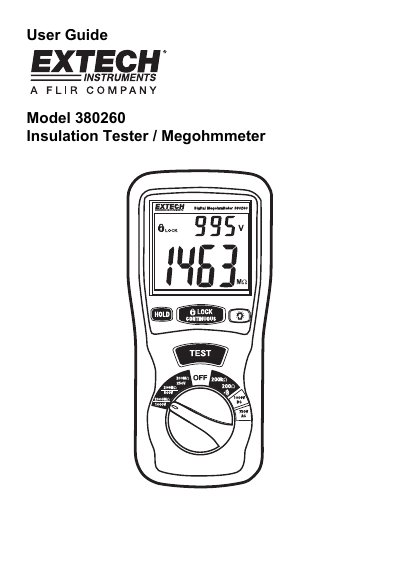

Extech 380260 Insulation Tester/Megohmmeter is a high performance measuring device that provides three test ranges, continuity and AC/DC voltage measurement. It also includes a handy test lock feature and a data hold function. This professional meter, with proper care, will provide years of reliable service.
The Extech Model 380260 is a professional Insulation Tester/Megohmmeter designed for electrical testing and maintenance. It features three test ranges, continuity measurement, and AC/DC voltage measurement capabilities. The device includes a data hold function, a test lock feature, and an audible continuity beeper for hands-free operation and safety verification.
The manual provides detailed instructions on connecting test leads, performing insulation resistance tests, and measuring voltage and resistance. It also outlines specific application procedures for testing power tools, AC and DC motors, and cables, along with general specifications and maintenance guidelines.
| Max IR Range | 2000M Ω |
|---|---|
| Test Voltage | 250V, 500V, 1000VDC |
| Power Source | Six (6) 1.5 'AA' batteries |
| Operating Temperature | 0 to 40 oC |
The maximum measurement range for the 380260 is 2000M Ω.
The display will indicate '1', meaning the resistance is very high and the insulation being tested is good.
