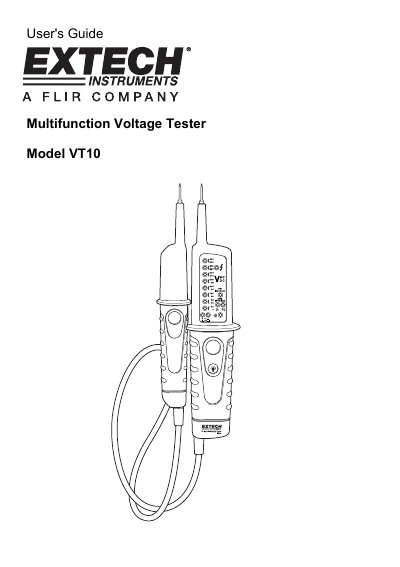

Extech VT10 is a multi-function voltage tester from Extech, with a measurement range of AC voltage 600V and DC voltage 400V, equipped with LED indicators, with positive and negative polarity LEDs, supporting audio continuity beeper, low impedance mode, and a built-in flashlight to illuminate test connections during measurements.
The Extech VT10 is a multifunction voltage tester designed to measure AC voltage up to 600V and DC voltage up to 400V. It features LED indicators for voltage levels and polarity, an audible continuity beeper, a low impedance mode to eliminate phantom voltages, and a built-in flashlight. The device is intended for origin of installation use and is protected by double insulation per EN61243-3:2010 CATIII 600V and CAT IV 600V standards.
| AC Voltage Range | 24, 48, 120, 208, 240, 277, 480, 600V |
|---|---|
| DC Voltage Range | 6, 12, 24, 36, 48, 110, 220, 400V |
| Accuracy | -30% to 0% of the indication |
| Input Impedance | 1MΩ (approx) |
| Continuity Test Range | 0 to 400kΩ |
| Power Supply | 2 x AAA 1.5V alkaline batteries |
| Battery Life | Approx. 8 hours |
| Operating Temperature | 14 to 131°F (-10 to 55°C) |
| Dimensions | 3 x 1.6 inches (240 x 78 x 40mm) |
The VT10 measures AC Voltage to 600V.
Use the low impedance mode by pressing the two low impedance test buttons simultaneously to suppress capacitive voltage.
The meter requires two 'AAA' 1.5V alkaline batteries.
Extech warrants the instrument to be free of defects in parts and workmanship for one year from date of shipment.
