The FDMF6704A is a high performance, high frequency DrMOS module with a compact 6mm x 6mm MLP package. It offers high power density and efficiency and is ideal for high frequency synchronous buck DC-DC applications.

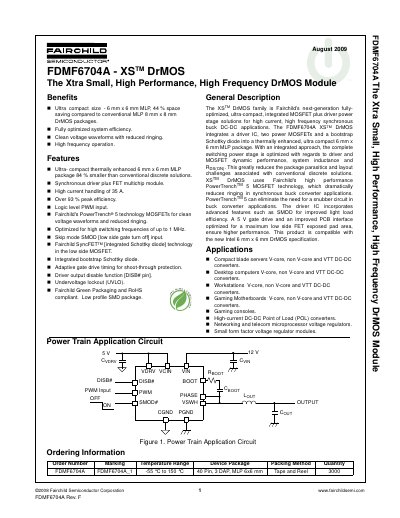

The FDMF6704A is an ultra-compact, integrated MOSFET plus driver power stage solution designed for high current and high frequency synchronous buck DC-DC applications. It integrates a driver IC, two power MOSFETs, and a bootstrap Schottky diode into a 6 mm x 6 mm MLP package, offering significant space savings compared to conventional discrete solutions.
The module utilizes Fairchild's PowerTrench 5 MOSFET technology and SyncFET technology to ensure clean voltage waveforms with reduced ringing, often eliminating the need for external snubber circuits. It is optimized for switching frequencies up to 1 MHz and includes features such as Skip Mode (SMOD) for improved light load efficiency and adaptive gate drive timing for shoot-through protection.
| Package | 6 mm x 6 mm MLP |
|---|---|
| Current Handling | 35 A |
| Peak Efficiency | Over 93 % |
| Switching Frequency | Up to 1 MHz |
| Operating Temperature Range | -55 °C to 150 °C |
| Junction to PCB Thermal Resistance | 3.75 °C/W |
| Control Circuit Supply Voltage | 4.5 V to 5.5 V |
| Output Stage Supply Voltage | 3 V to 14 V |
It is optimized for synchronous buck converter topology applications.
It enables Skip Mode, which disables the low-side FET to improve efficiency under light load conditions.
