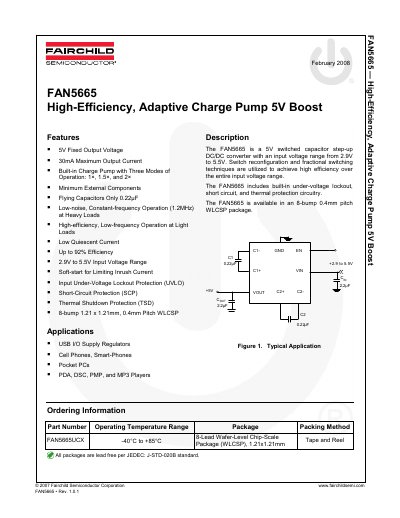

The FAN5665 is a 5V switched capacitor step-up DC/DC converter with an input voltage range from 2.9V to 5.5V. Switch reconfiguration and fractional switching techniques are utilized to achieve high efficiency over the entire input voltage range. The FAN5665 includes built-in under-voltage lockout, short circuit, and thermal protection circuitry. The FAN5665 is available in an 8-bump 0.4mm pitch WLCSP package.
The FAN5665 is a switched capacitor step-up DC/DC converter featuring a built-in charge pump with three modes of operation: 1x, 1.5x, and 2x. It is designed to achieve high efficiency over the entire input voltage range using switch reconfiguration and fractional switching techniques. The device includes built-in protection circuitry for under-voltage lockout, short circuit, and thermal shutdown.
| Output Voltage | 5V Fixed |
|---|---|
| Maximum Output Current | 30mA |
| Input Voltage Range | 2.9V to 5.5V |
| Operating Temperature Range | -40°C to +85°C |
| Flying Capacitors | 0.22uF |
| Oscillator Frequency | 1.2MHz |
The maximum output current is 30mA.
The input voltage range is from 2.9V to 5.5V.
