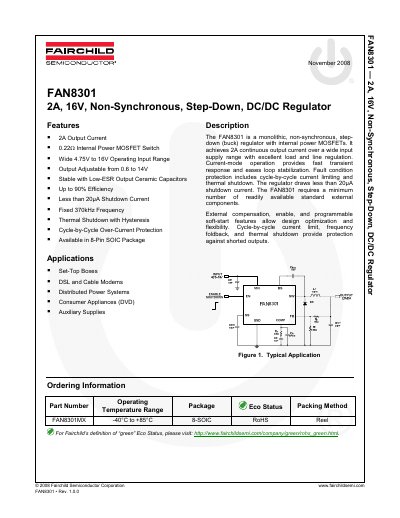

The FAN8301 is a monolithic, non-synchronous, step-down (buck) regulator with internal power MOSFETs. It achieves 2A continuous output current over a wide input supply range with excellent load and line regulation. Current-mode operation provides fast transient response and eases loop stabilization. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown. The regulator draws less than 20µA shutdown current. The FAN8301 requires a minimum number of readily available standard external components. External compensation, enable, and programmable soft-start features allow design optimization and flexibility. Cycle-by-cycle current limit, frequency foldback, and thermal shutdown provide protection against shorted
The FAN8301 is a monolithic, non-synchronous, step-down (buck) regulator featuring an internal power MOSFET switch. It supports a wide input voltage range from 4.75V to 16V and provides up to 2A of continuous output current with adjustable output voltages between 0.6V and 14V.
| Output Current | 2A |
|---|---|
| Internal Switch Resistance | 0.22Ω |
| Input Voltage Range | 4.75V to 16V |
| Output Voltage Range | 0.6 to 14V |
| Efficiency | Up to 90% |
| Shutdown Current | <20µA |
| Oscillator Frequency | 370kHz |
It is designed for use in Set-Top Boxes, DSL and Cable Modems, Distributed Power Systems, Consumer Appliances (DVD), and Auxiliary Supplies.
The FAN8301 is available in an 8-Pin SOIC Package.
