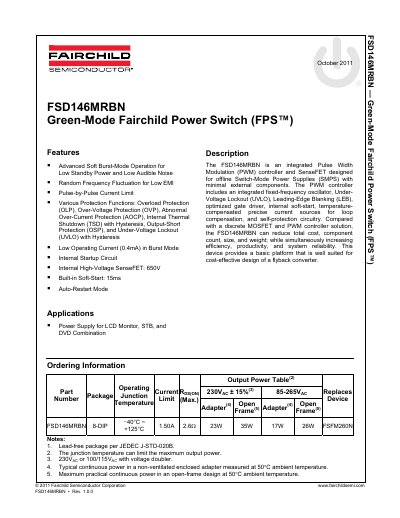

The FSD146MRBN is an integrated Pulse Width Modulation (PWM) controller and SenseFET designed for offline Switch-Mode Power Supplies (SMPS) with minimal external components. It features low standby power, low audible noise, low EMI, various protection functions, low operating current, internal startup circuit, internal high-voltage SenseFET, built-in soft-start, and auto-restart mode.
The FSD146MRBN is an integrated Pulse Width Modulation (PWM) controller and SenseFET designed for offline Switch-Mode Power Supplies (SMPS) with minimal external components. It features advanced Soft Burst-Mode operation for low standby power and low audible noise, along with random frequency fluctuation for low EMI. The device includes various protection functions such as Overload Protection (OLP), Over-Voltage Protection (OVP), and Internal Thermal Shutdown (TSD).
| Drain Pin Voltage | 650 V |
|---|---|
| Continuous Switching Drain Current | 17 A |
| Total Power Dissipation | 15 W |
| Maximum Junction Temperature | 150 °C |
| Operating Junction Temperature | -40 +125 °C |
It is suitable for power supplies in LCD monitors, set-top boxes (STB), and DVD combinations.
The recommended Vcc range is 13V to 23V.
