This manual contains important information about the installation, operation and safe use of this product. This information should be given to the owner and/or operator of this equipment after installation.

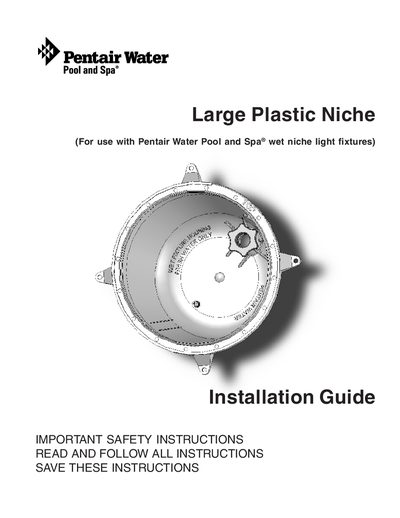

This guide provides installation instructions for the Pentair Large Plastic Niche, designed for use with Pentair Water Pool and Spa wet niche light fixtures. It covers critical safety precautions, including the requirement for installation by a licensed electrician and adherence to the National Electrical Code (NEC). Key electrical requirements include the use of a Ground Fault Circuit Interrupter (GFCI), proper bonding of metal items within five feet of the pool, and specific depth requirements for the light lens relative to the water surface.
| Compatible Light Fixtures | P/N 783xXxxxx, P/N 784xxxxx, P/N 788XXxX XX, P/N 789xxxxx, P/N 6000xx |
|---|---|
| Kit Contents | Plastic niche (large), Cap, Cord Seal, PVC Conduit, Elbow |
| Minimum Depth from Water Line | 18 inches |
| Minimum Distance from Pool Edge | 48 inches |
| Ground Connector Size | No. 8 AWG |
This product must be installed by a licensed or certified electrician or a qualified pool serviceman.
The top edge of the lens must be at least 18 inches below the surface of the water.
No, under no circumstances should lights be replaced by splicing wire under water or behind the niche.
