This document describes the features and characteristics of the three-phase motors with squirrel cage rotor, standard motors, type IE2-WE1R 225 S4 KV NS VL HW, manufactured by VEM motors GmbH. It includes design output power, design torque, efficiency, power factor, etc.

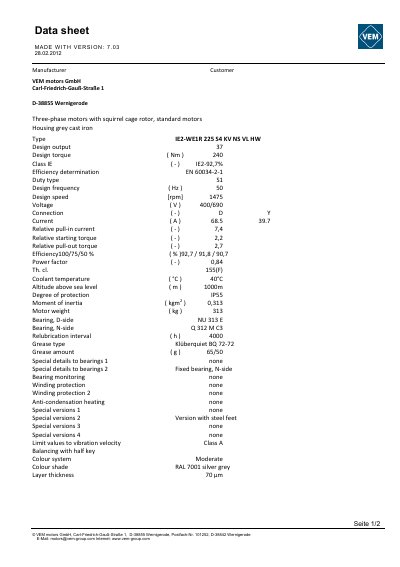

This document is a technical data sheet for the VEM IE2-WE1R 225 S4 KV NS VL HW three-phase motor with a squirrel cage rotor. It provides key performance specifications including a design output of 37 kW, a design torque of 240 Nm, and an efficiency of 92.7% at 100% load. The motor features a grey cast iron housing and is designed for a standard duty type S1 at a frequency of 50 Hz.
| Design output | 37 kW |
|---|---|
| Design torque | 240 Nm |
| Efficiency | 92.7% / 91.8% / 90.7% |
| Design speed | 1475 rpm |
| Voltage | 400/690 V |
| Housing material | grey cast iron |
The mounting position is GA with a type of mounting IM V6.
The terminal box is located on the top.
The terminal box size is KK 100 A.
