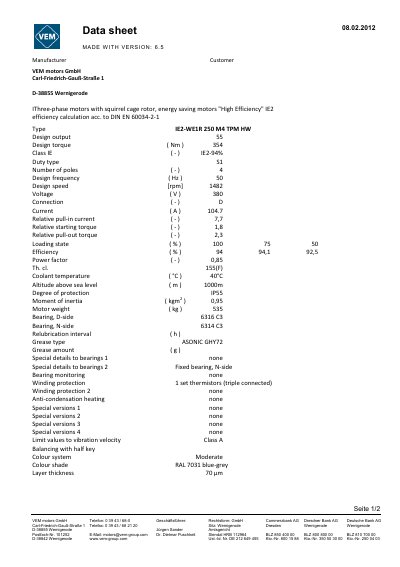

VEM IE2-WE1R 250 M4 TPM HW Three-Phase Motor Data Sheet

This is the technical data sheet for the IE2-WE1R 250 M4 TPM HW type three-phase asynchronous motor produced by VEM motors GmbH.

Brand: VEM
Category: Motor
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 58 KB
Published: 11 July, 2012
Updated: 30 September, 2023
Model: IE2-WE1R
MD5 checksum: 4573CFB29EC4648BAC728E7600F51F3A
PDF: VEM IE2-WE1R 250 M4 TPM HW Three-Phase Motor Data Sheet PDF

About this manual

This document is a technical datasheet for the VEM IE2-WE1R 250 M4 TPM HW, an energy-saving three-phase motor with a squirrel cage rotor. The motor features High Efficiency (IE2) classification according to DIN EN 60034-2-1 and is designed for S1 duty type operation.

What's inside

General Specifications
Electrical Data
Mechanical Data
Mounting Dimensions
Terminal Box
Bearing Details

Specifications

Design output	55 kW
Efficiency Class	IE2
Design frequency	50 Hz
Current	104.7 A
Power factor	0.85
Coolant temperature	40°C
Mounting position	IM V1
Flange type	FF 500 [A 550]

Frequently asked questions

What type of rotor does this motor use?

The VEM IE2-WE1R 250 M4 TPM HW is a three-phase motor with a squirrel cage rotor.

How many poles and what is the design speed?

The motor has four poles and a design speed of 1482 rpm at 50 Hz.

Download PDF (58 KB)
